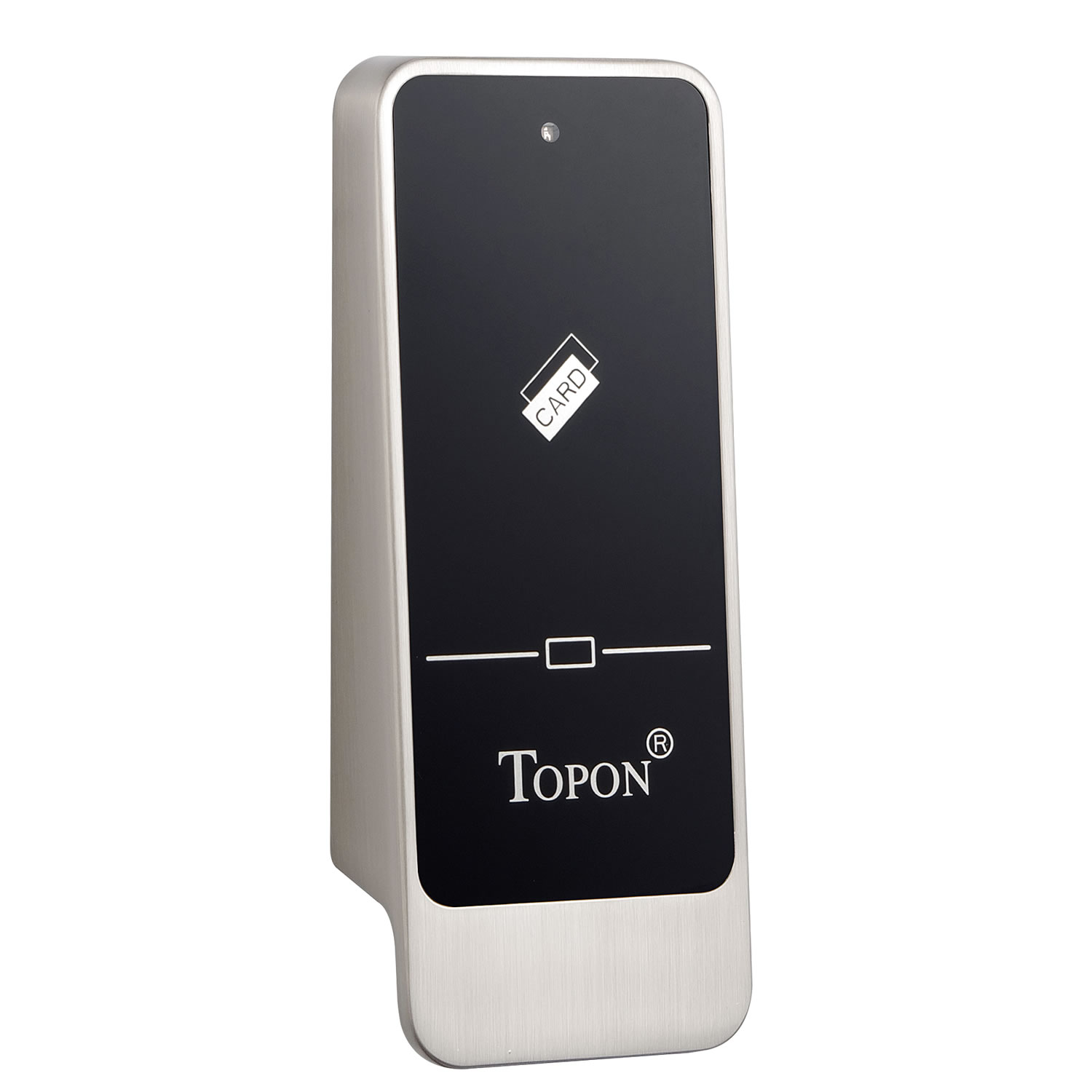

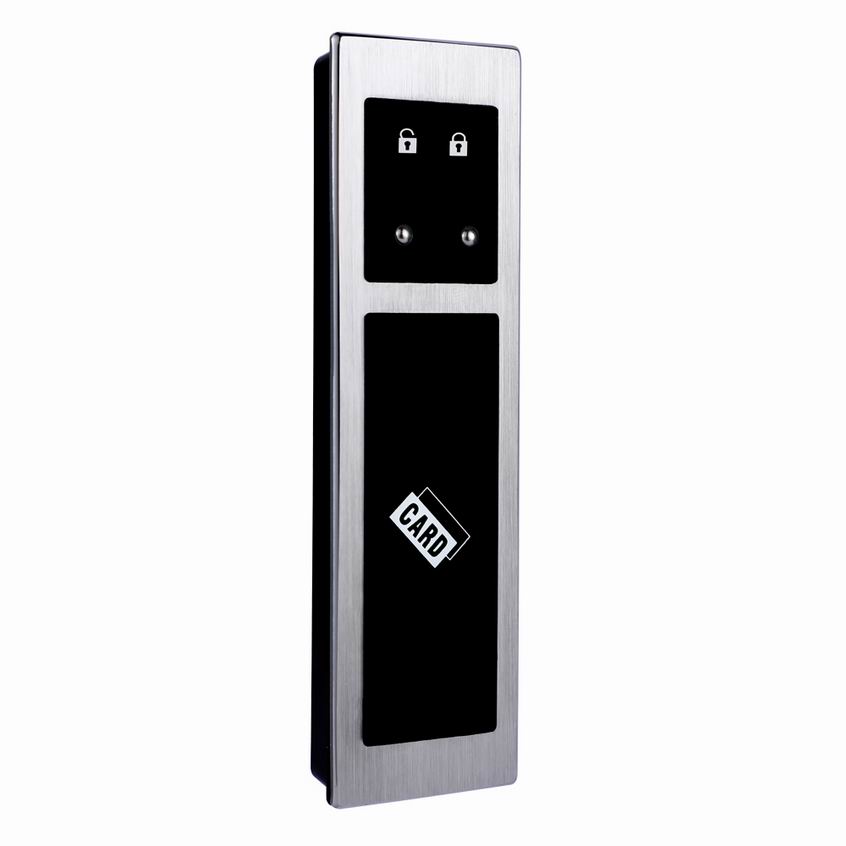

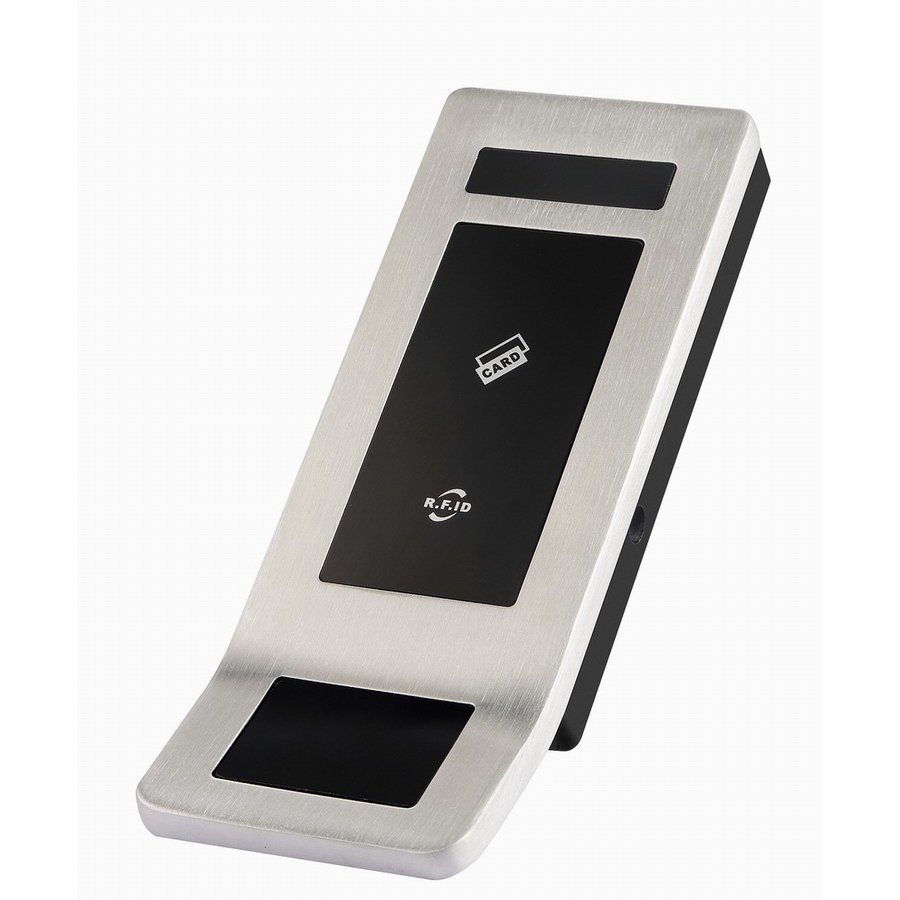

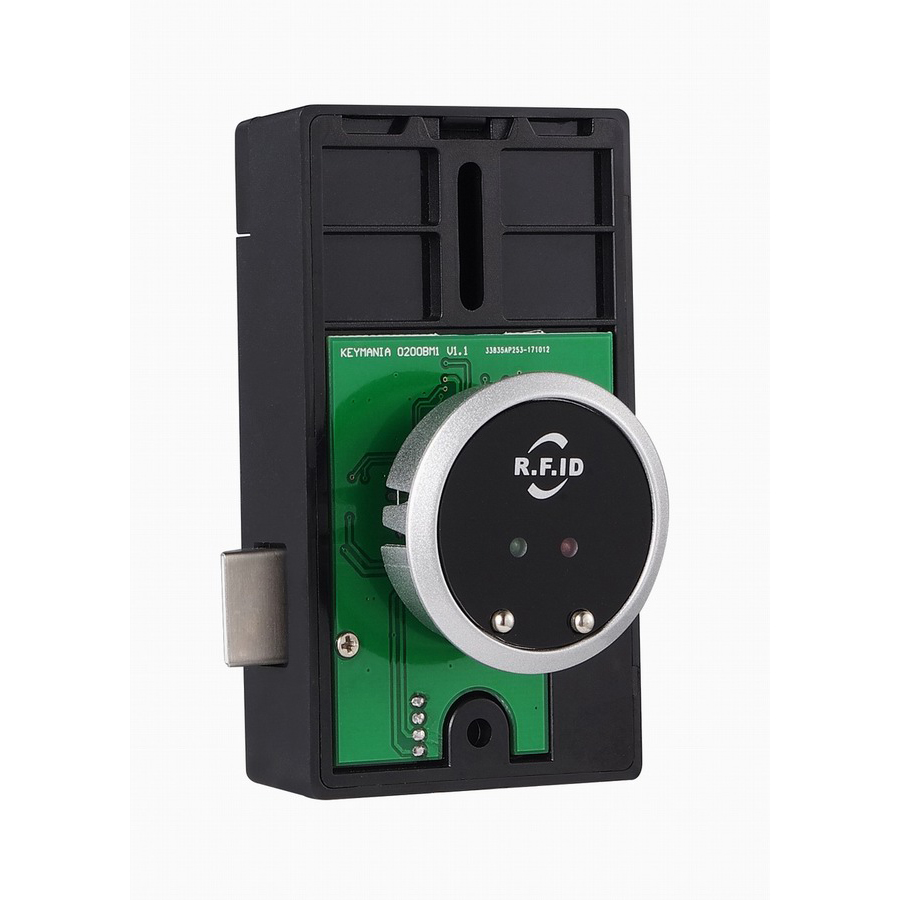

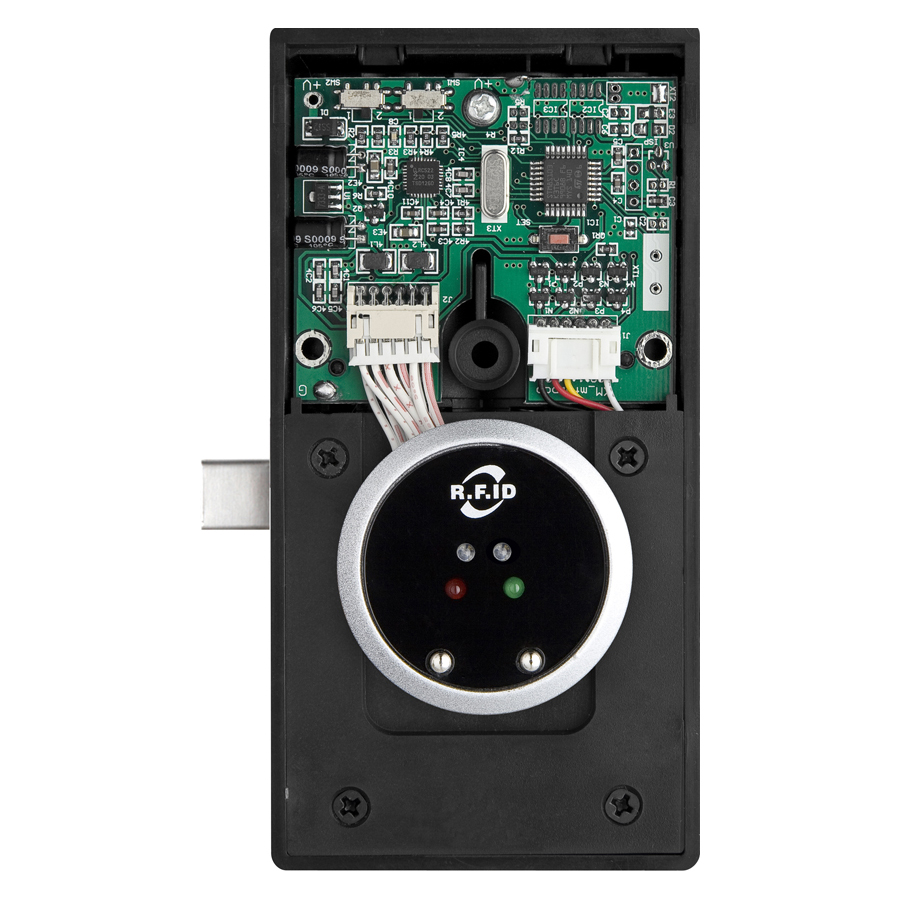

RFID Standalone Type (Fixed Mode)

Main Features:

l  3- level-management Mode

Ø  Owner card is for program or delete Master card

Ø  Master card is for program & delete user card and also for emergency unlocking;

Ø  User card is the key of the lock (one card or double cards unlocking)

l  Manual or auto-locking optional

l  Illegal card alarm

The lock will alarm for 20 seconds after 6 attempts of illegal card.

l  Low voltage alarm

When operating voltage is on or below DC3.7 �� 0.2, scan the opening card to unlock, indicator light blinks, and the lock emits 8 beeps to show low voltage, the batteries must be replaced with new ones.

l  Anti-picked (prized) alarm

If the latch is pressed or picked by illegal way, the lock will alarm 20 seconds.

l  External power back up

In case the batteries are exhausted and the lock is locked, use an external power charger for emergency unlocking.

l  Indicator blinks while in locked status;

When the lock is in locked status, indicator light blinks every 5 seconds to show the lock in use; the visitor knows which cabinet is in use and which is empty. This function is suitable for public function.

How to assign Owner Card & Master Card for the locks (in a project)?

Suppose: There is a project with 400 cabinets, and divide Male area and Female area with 250 cabinets for Male and 150 cabinets for Female. Program an Owner card for the project with 400 cabinets, and then use the owner card to program one or 2 master cards for Male area with 250 cabinets and program the other one or 2 master cards for Female area with 150 cabinets. In case the user couldn��t unlock his(or her) cabinet, ask the male(or female) manager to unlock the cabinet by his (or her)master card; If some user card is lost or taken away by the user, just use the master card to delete the lost card or the taken-away card on the specific lock and program a new user card to replace the lost card or taken-away card.(the original user card can not unlock the cabinet again and the new user card programmed by the master card can be used).

 If the manager loses the master card or takes away the master card when leaving the job, just use the owner card to delete the master card on each lock and use the owner card to program one or 2 new master cards for each lock to replace the deleted master card.

(the original user cards can not be used after the original master cards are deleted and need to be programmed again by the new master card)
