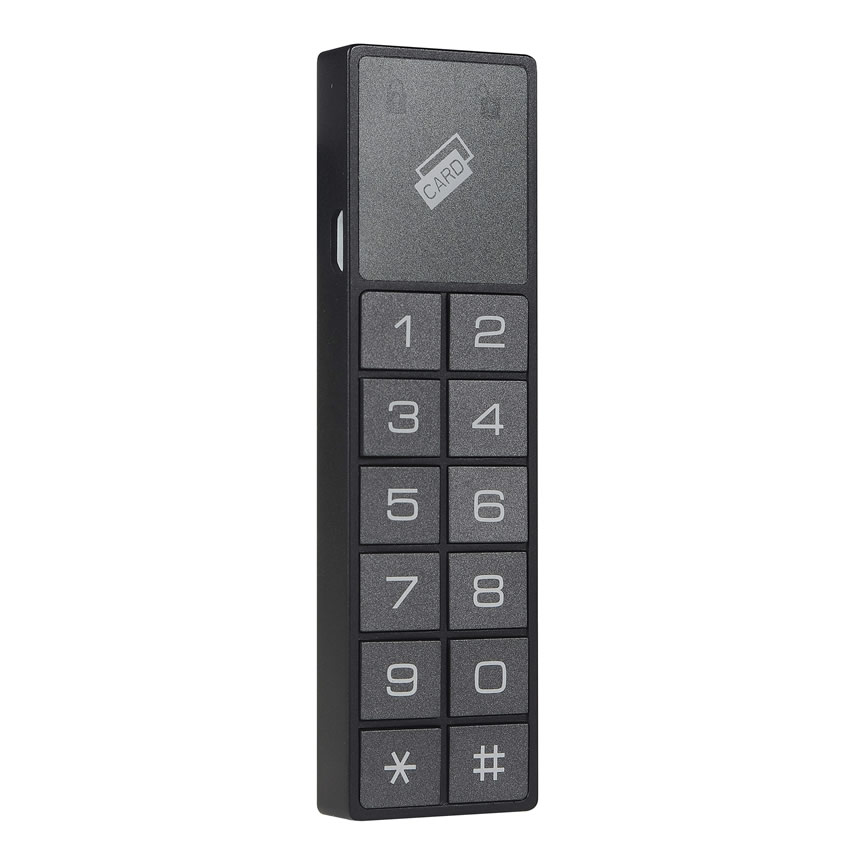

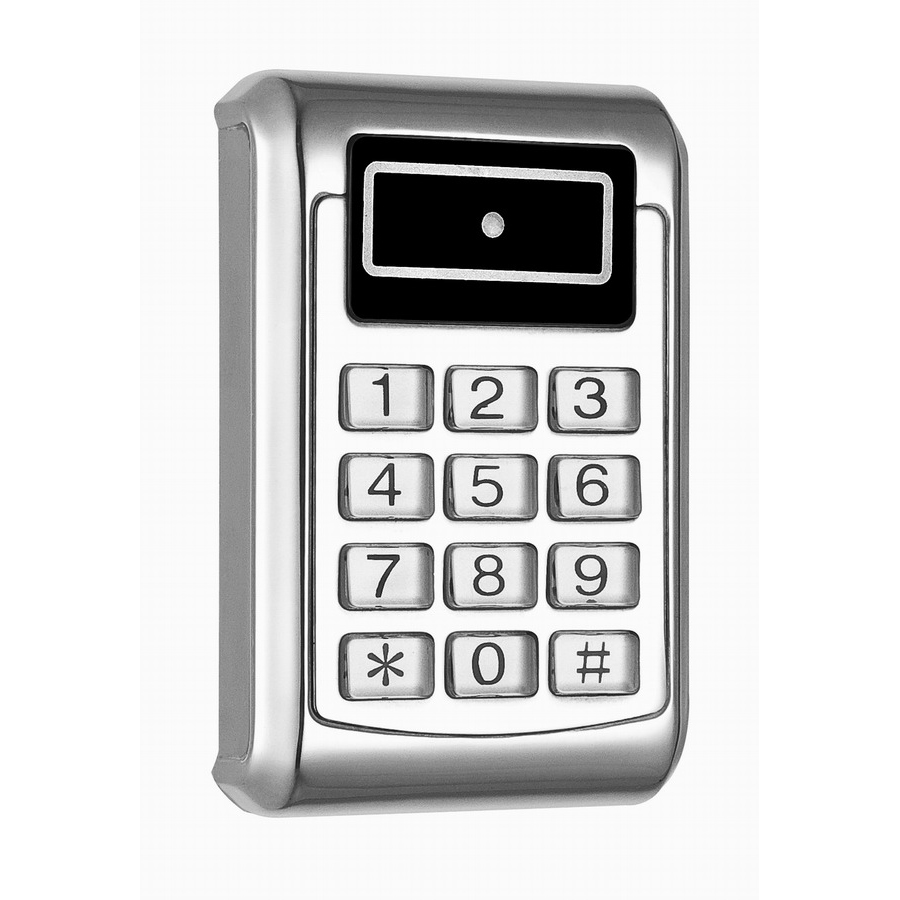

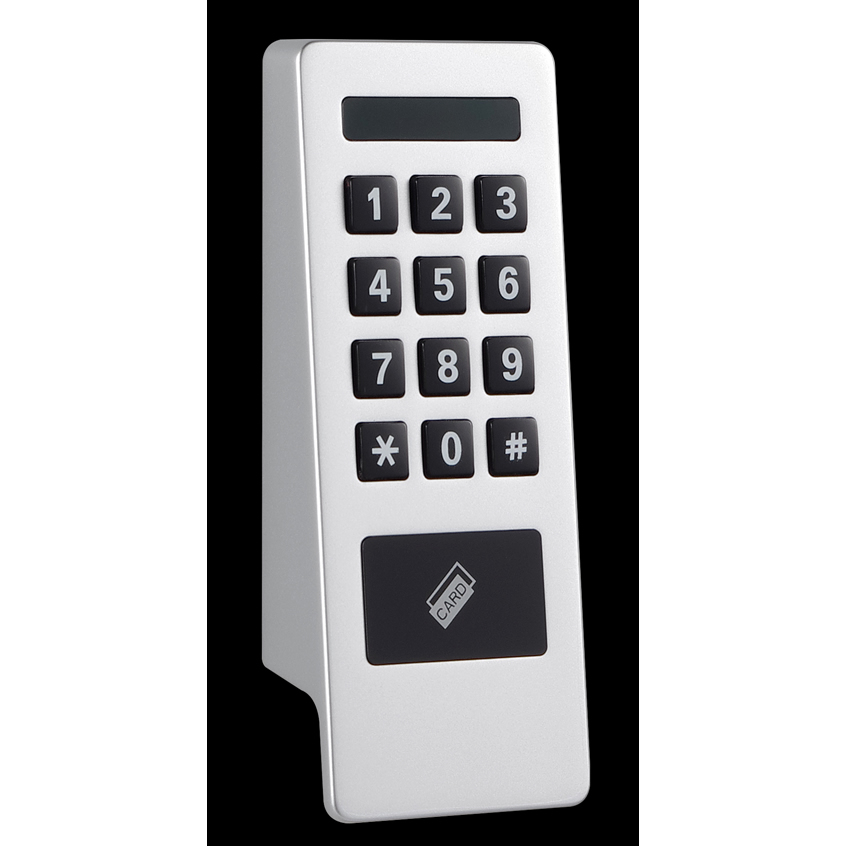

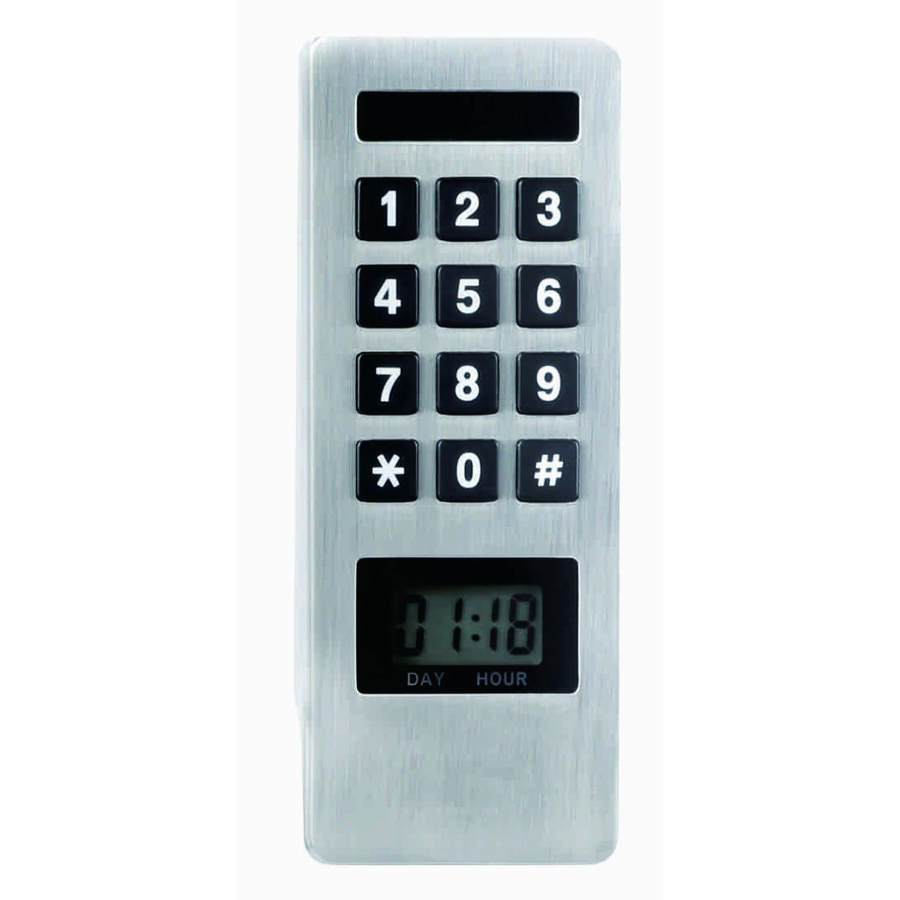

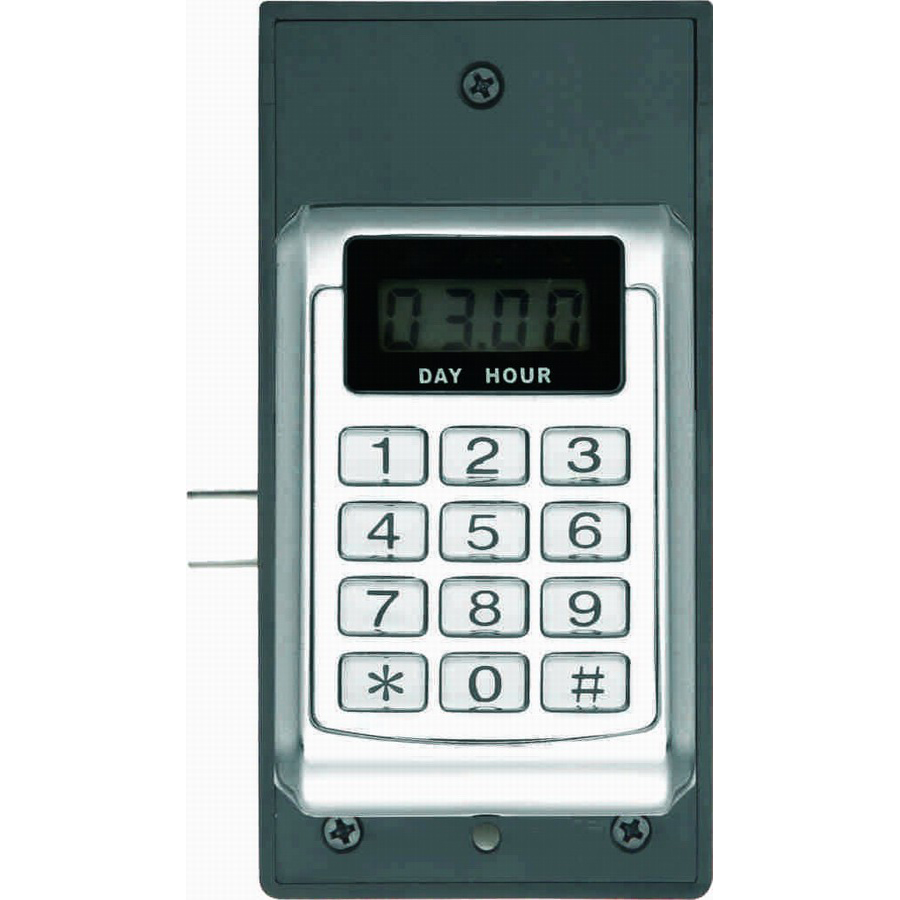

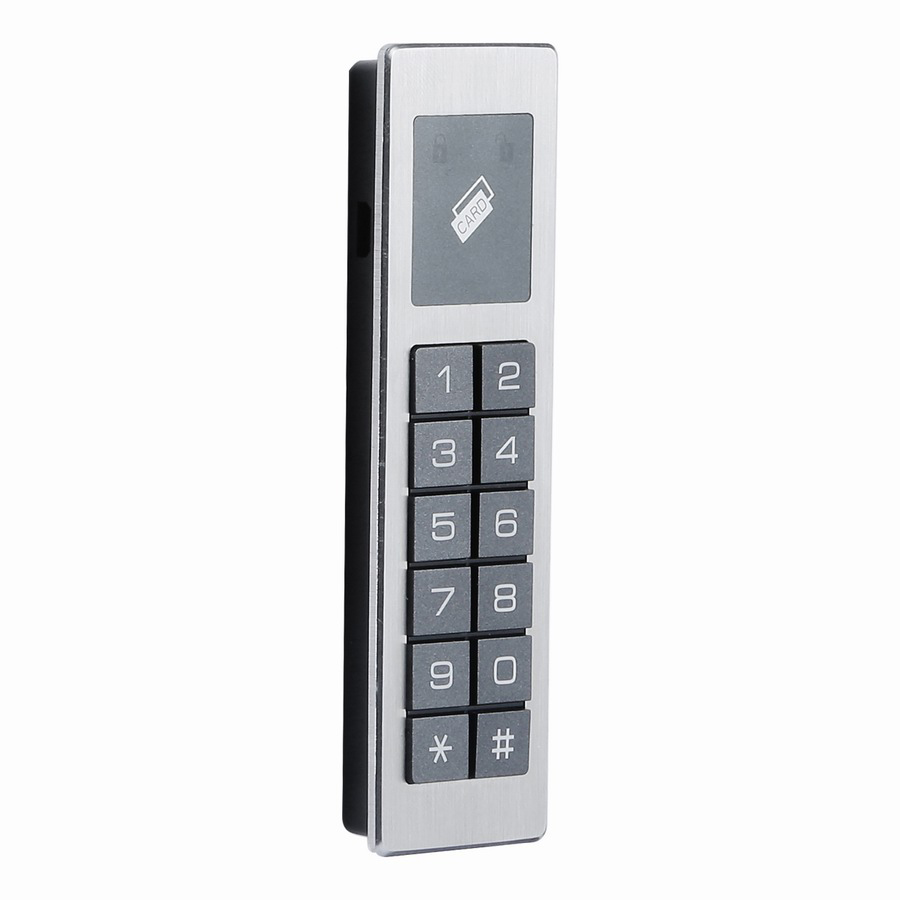

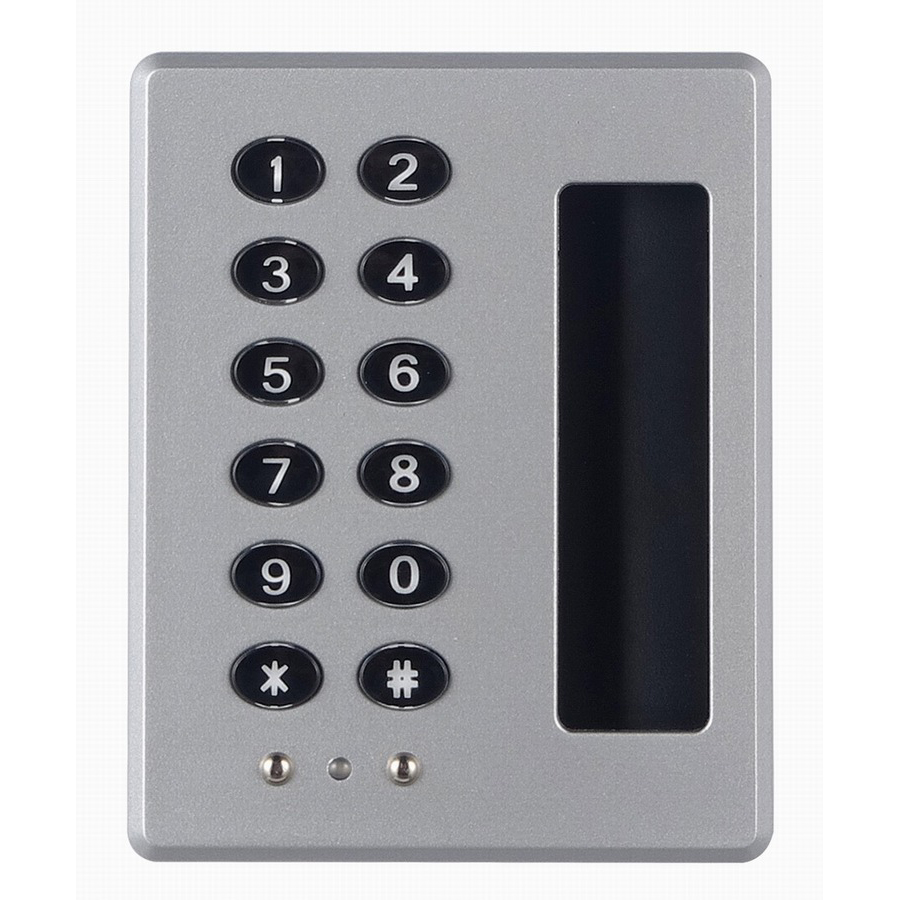

Keypad Digital Type

Main Features:

• ● Secure control by level-management (Owner card→ Master card → user code)
•      >Owner card is for program & delete Master card
•      >Owner card takes control of all locks in a project;
•      >Master card is for program & delete user code and for emergency unlocking;
•      >Master card takes control of some locks in a project;
•      >User code (one-time code for Public and permanent code for Private)
•      >Permanent code for Private Use
  Enter the permanent code to unlock it
  It will automatically lock itself or press # to lock;

• One-time Code for Public Use

Enter a one-time code to lock it
Enter the same code to unlock it
It will be available for the next user

• ●Keypad with backlight for easy distinguish;
• ●Multiple unlock modes: one-time code or permanent code (or user card);
• ●Wrong code, or illegal card alarm;

Any 4 times attempts by scanning any illegal cards or entering any wrong code, the lock emits continuous beeps alarm 20 seconds.

• ●Low voltage alarm

When operating voltage is on or below DC3.7 ± 0.2, scan the opening card or enter digital code to unlock, indicator light blinks, and the lock emits 8 beeps to show low voltage, the batteries must be replaced with new ones.

• ●Anti-picked (prized) alarm

If the latch is pressed or picked by illegal way, the lock emits continuous alarms 20 seconds.

• ●External power back up

In case the batteries are exhausted and the lock is locked, use an external power charger, then scan the opening card or enter digital code to unlock.

• ●Indicator blinks while in locked status;

When the lock is in locked status, indicator light blinks every 5 seconds to show the lock in use; the visitor knows which cabinet is in use and which is empty. This function is suitable for public function.

How to assign Owner card & Master Card for the locks (in a project)?
Suppose: There is a project with 1200 lockers, and divide 2 different areas with 700 lockers for Male and 500 lockers for Female. Program an Owner card for the project with all the 1200 lockers and use the owner card to program 1 or 2 master cards for Male area 700 lockers, and program the other 1 or 2 master cards for Female area 500 lockers. The male manager are in charge in the Male area of 700 lockers while the female manager in charge of Female area of 500 lockers. the user uses his/her code or “user card +code” to operate the lockers, in case he (or she) forgets about his/her code and can not unlock his/her lockers, just ask the manager to unlock the locker by the master card.
